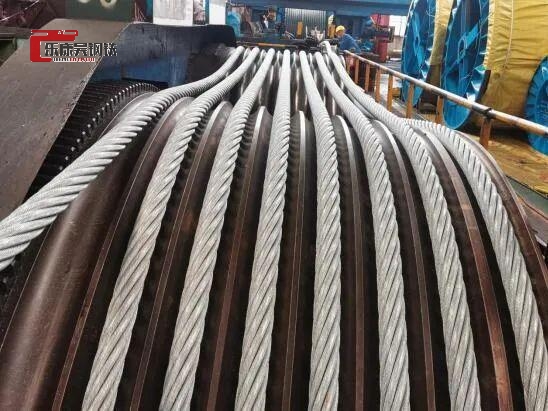

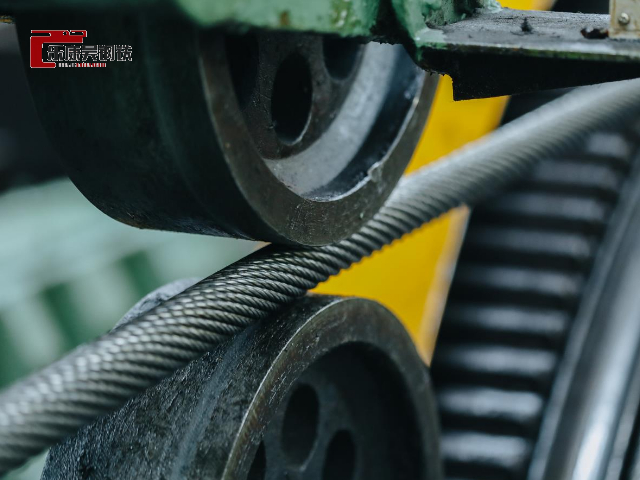

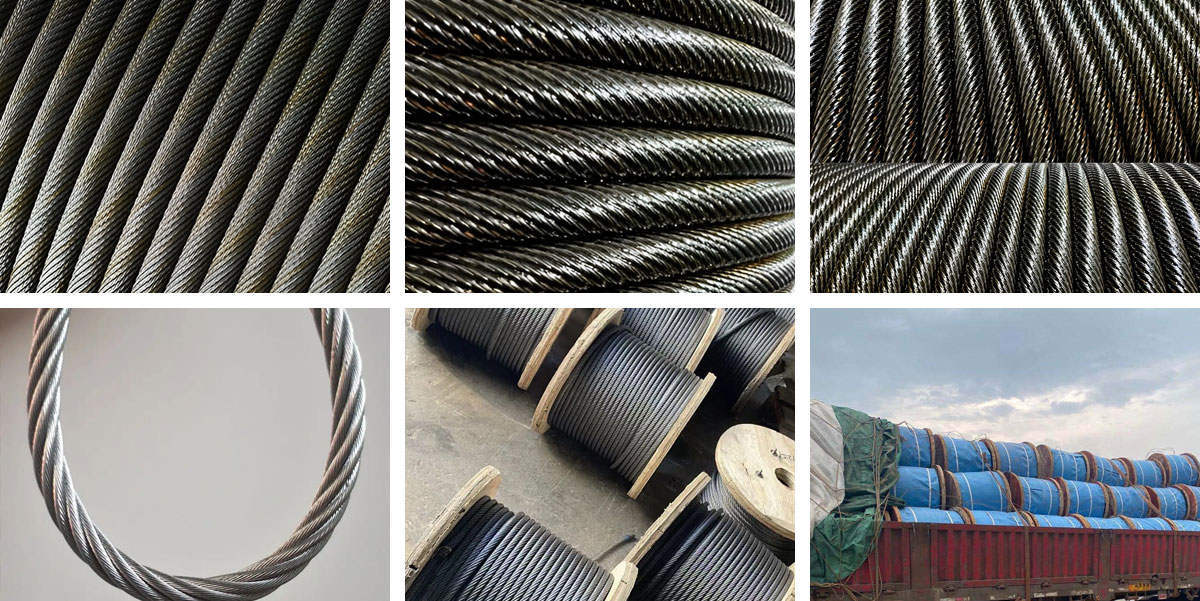

Wire Rope

◉ Product Details

（construction）：6×19S+FC 6×19S+IWR 6×19W+FC 6×19W+IWR
Nominal Diameter		Approox.Weight			Nominal Tensite Strength of Rope （MPa）
					1470		1570		1670		1770		1780
					Minimum Breaking Load of Rope
d	Allowed Tolerance	NFNatural fibersCore steel wire rope	SFSynthetic fibersCore steel wire rope	IWR/IWSSteel coreSteel wire rope	FCFiber coreSteel wire rope	IWR/IWSSteel coreSteel wire rope	FCFiber coreSteel wire rope	IWR/IWSSteel coreSteel wire rope	FCFiber coreSteel wire rope	IWR/IWSSteel coreSteel wire rope	FCFiber coreSteel wire rope	IWR/IWSSteel coreSteel wire rope	FCFiber coreSteel wire rope	IWR/IWSSteel coreSteel wire rope
mm	％	kg/100m			kN
5	+60	9.20	9.00	10.10	12.10	13.10	13.00	14.00	13.80	14.90	14.60	15.80	15.40	16.60
6		13.30	13.00	14.60	17.50	18.80	18.70	20.10	19.80	21.40	21.40	22.70	22.20	24.00
7		18.20	17.60	19.90	23.80	25.60	25.40	27.40	27.00	29.10	28.60	30.90	30.20	32.60
8		23.60	23.00	25.90	31.00	33.50	33.20	35.80	35.30	38.00	37.40	40.30	39.50	42.60
9		29.90	29.10	32.80	39.30	42.40	42.00	45.30	44.60	48.20	47.30	51.00	50.00	53.90
10		36.90	36.00	40.50	48.50	52.30	51.80	55.90	55.10	59.50	58.40	63.00	61.70	66.60
11		44.60	43.50	49.10	58.70	63.30	62.70	67.60	66.70	71.90	70.70	76.20	74.70	80.60
12		53.10	51.80	58.40	69.90	75.40	74.60	80.50	79.40	85.60	84.10	90.70	88.90	95.90
13		62.30	60.80	68.50	82.00	88.40	87.60	94.50	93.10	100.00	98.70	106.00	104.00	113.00
14		72.20	70.50	79.50	95.10	103.00	102.00	110.00	108.00	117.00	114.00	124.00	121.00	130.00
16		94.40	92.10	104.00	124.00	134.00	133.00	143.00	141.00	152.00	150.00	161.00	158.00	170.00
18		119.00	117.00	131.00	157.00	170.00	168.00	181.00	179.00	193.00	189.00	204.00	200.00	216.00
20		147.00	144.00	162.00	194.00	209.00	207.00	224.00	220.00	238.00	234.00	252.00	247.00	266.00
22		178.00	174.00	196.00	235.00	253.00	251.00	271.00	267.00	288.00	283.00	305.00	299.00	322.00
24		212.00	207.00	234.00	279.00	301.00	298.00	322.00	317.00	342.00	336.00	363.00	355.00	383.00
26		249.00	243.00	274.00	328.00	354.00	350.00	378.00	373.00	402.00	395.00	426.00	417.00	450.00
28		289.00	282.00	318.00	380.00	410.00	406.00	438.00	432.00	466.00	458.00	494.00	484.00	522.00
30		332.00	324.00	365.00	437.00	471.00	466.00	503.00	496.00	535.00	526.00	567.00	555.00	599.00
32		377.00	369.00	415.00	497.00	536.00	531.00	572.00	564.00	609.00	598.00	645.00	632.00	682.00
34		426.00	416.00	469.00	561.00	605.00	599.00	646.00	637.00	687.00	675.00	728.00	713.00	770.00
36		478.00	466.00	525.00	629.00	678.00	671.00	724.00	714.00	770.00	757.00	817.00	800.00	863.00
38		532.00	520.00	585.00	700.00	756.00	748.00	807.00	796.00	858.00	843.00	910.00	891.00	961.00
40		590.00	576.00	649.00	776.00	837.00	829.00	894.00	882.00	951.00	935.00	1010.00	987.00	1070.00
42		650.00	635.00	715.00	856.00	923.00	914.00	986.00	972.00	1050.00	1030.00	1110.00	1090.00	1170.00
44		714.00	679.00	785.00	939.00	1010.00	1000.00	1080.00	1070.00	1150.00	1130.00	1220.00	1190.00	1290.00
46		780.00	761.00	858.00	1030.00	1110.00	1100.00	1180.00	1170.00	1260.00	1240.00	1330.00	1310.00	1410.00
48		849.00	829.00	934.00	1120.00	1210.00	1190.00	1290.00	1270.00	1370.00	1350.00	1450.00	1420.00	1530.00
50		922.00	900.00	1010.00	1210.00	1310.00	1300.00	1400.00	1380.00	1490.00	1460.00	1580.00	1540.00	1660.00
52		997.00	973.00	1100.00	1310.00	1420.00	1400.00	1510.00	1490.00	1610.00	1580.00	1700.00	1670.00	1800.00
54		1070.00	1050.00	1180.00	1410.00	1530.00	1510.00	1630.00	1610.00	1730.00	1700.00	1840.00	1800.00	1940.00
56		1160.00	1130.00	1270.00	1520.00	1640.00	1620.00	1750.00	1730.00	1860.00	1830.00	1980.00	1940.00	2090.00
58		1240.00	1210.00	1360.00	1630.00	1760.00	1740.00	1880.00	1850.00	2000.00	1960.00	2120.00	2080.00	2240.00
60		1330.00	1300.00	1460.00	1750.00	1880.00	1870.00	2010.00	1980.00	2140.00	2100.00	2270.00	2220.00	2400.00
62		1420.00	1380.00	1560.00	1860.00	2010.00	1990.00	2150.00	2120.00	2290.00	2250.00	2420.00	2370.00	2560.00
64		1510.00	1470.00	1660.00	1990.00	2140.00	2120.00	2290.00	2260.00	2440.00	2390.00	2580.00	2530.00	2730.00
66		1610.00	1570.00	1770.00	2110.00	2280.00	2260.00	2430.00	2400.00	2590.00	2540.00	2740.00	2690.00	2900.00
68		1700.00	1660.00	1870.00	2240.00	2420.00	2400.00	2580.00	2550.00	2750.00	2700.00	2910.00	2850.00	3080.00
70		1810.00	1760.00	1990.00	2380.00	2560.00	2540.00	2740.00	2700.00	2910.00	2860.00	3090.00	3020.00	3260.00
72		1910.00	1870.00	2100.00	2510.00	2710.00	2690.00	2900.00	2860.00	3080.00	3030.00	3270.00	3200.00	3450.00
74		2020.00	1970.00	2220.00	2660.00	2870.00	2840.00	3060.00	3020.00	3260.00	3200.00	3450.00	3380.00	3650.00
76		2130.00	2080.00	2340.00	2800.00	3020.00	2990.00	3230.00	3180.00	3430.00	3370.00	3640.00	3560.00	3850.00
78		2240.00	2190.00	2470.00	2950.00	3180.00	3150.00	3400.00	3350.00	3620.00	3550.00	3830.00	3750.00	4050.00
80		2360.00	2300.00	2590.00	3100.00	3350.00	3320.00	3580.00	3530.00	3800.00	3740.00	4030.00	3950.00	4260.00
